Configuration:
1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.
2. Configure with Japan THK linear rail for all axis, to ensure durable and high precision for long time processing.
3. X, Y тэнхлэг нь өндөр нарийвчлалтай нунтаглах төрлийн араа өлгүүр, Японы Shimpo бууруулагч, өндөр хурд, нарийвчлалыг хангах боломжтой, Z тэнхлэгийг өндөр нарийвчлалтай гулсмал шурагаар дамжуулдаг.
4. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, stronger torque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.
5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development, built-in process, ensure high-quality cutting effect.
6. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can be ensured.
7. Dual air path control, equipped with Japan SMC intelligent gas unit, automatic pressure regulation, air exchange, pressure detection, more simple to use.
8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.
9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.
| Загвар | FC1325 | FC1530 | FC1540 | FC1560 |
| working size(X&Y) (mm) | 1300*2500мм | 1500*3000мм | 1500*4000mm | 1500*6000mm |
| Laser medium | Шилэн лазер | |||
| Лазерын хүч | 800w, 1000w, 1500w, 2000w (Optiona) | |||
| зүсэх зузаан | According to the material and power | |||
| 0.1minimum Route Width | 0.1 | |||
| repeat precision | ±0.05 | |||
| Aiming Positioning | Red Dots | |||
| Wave Length | 1080 мм | |||
| Цахилгаан хангамж | 220-380V、50HZ | |||
Онцлогууд
1. Adopt heavy duty structure, CNC machinery center processing and forming, high strength and good stability;
2. More stronger cast iron stand to keep the machine working more stable;
3. Configure with high accuracy THK linear rail, high accuracy helical gear rack transmitting,more stability,higher precision;
4. Restart from power off, auto feeding, restoration, continue processing at break point. Support 9 coordinate setting, user friendly design;
5. Configured with SUDA 3 in 1 control system, quickcalculation, strong anti-interference ability;
6. Equipped with industrial camera,the probe is clear. High positioning precision;
7. Standard configured with 380V 5.5KW high speed water cooling spindle motor, high power high efficiency;
8. Independent control cabinet, stronger power and weak power separate, maintenance easily;
9. Be compatible with many CAD/CAM software like Type3/Artcam/Castmate/Probe/UG/Artgrave etc;
10. Standard with industrial matrix vacuum system;
11. Configure with manual oil lubrication system. Equipment maintenance is more convenient and quick.
Main Parts
Machine Structure

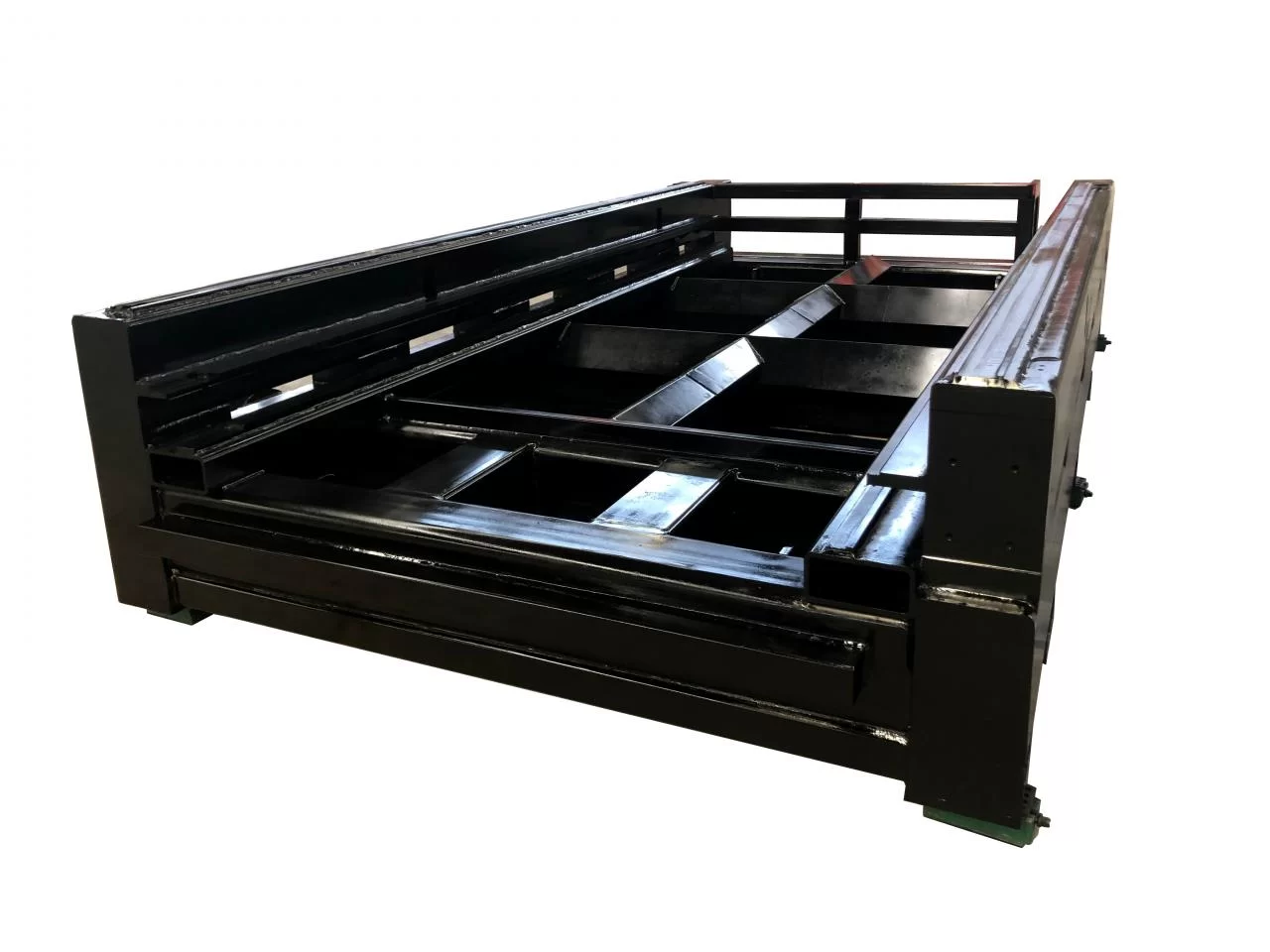

The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing.

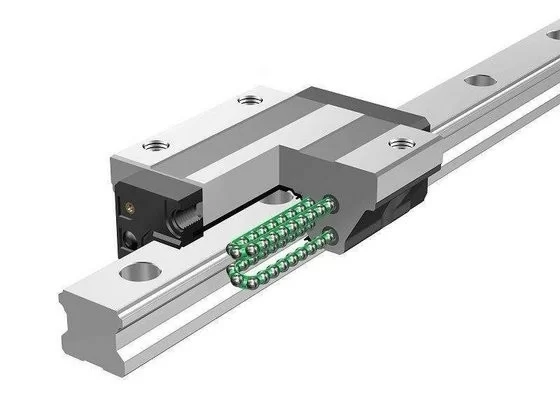

Japan THK Linear Rail and Block
The machine adopts the best linear and block rail from Japan. We have the feedback from our client that its block even can use over 10 years and can't break.The usage lifespan and the product quality definitely can be ensured.
France Schneider Servo System

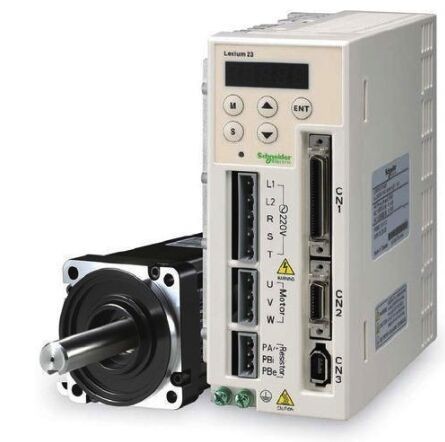

The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.
CYPCUT Control System
The best control system in fiber laser machine industry,
It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head.

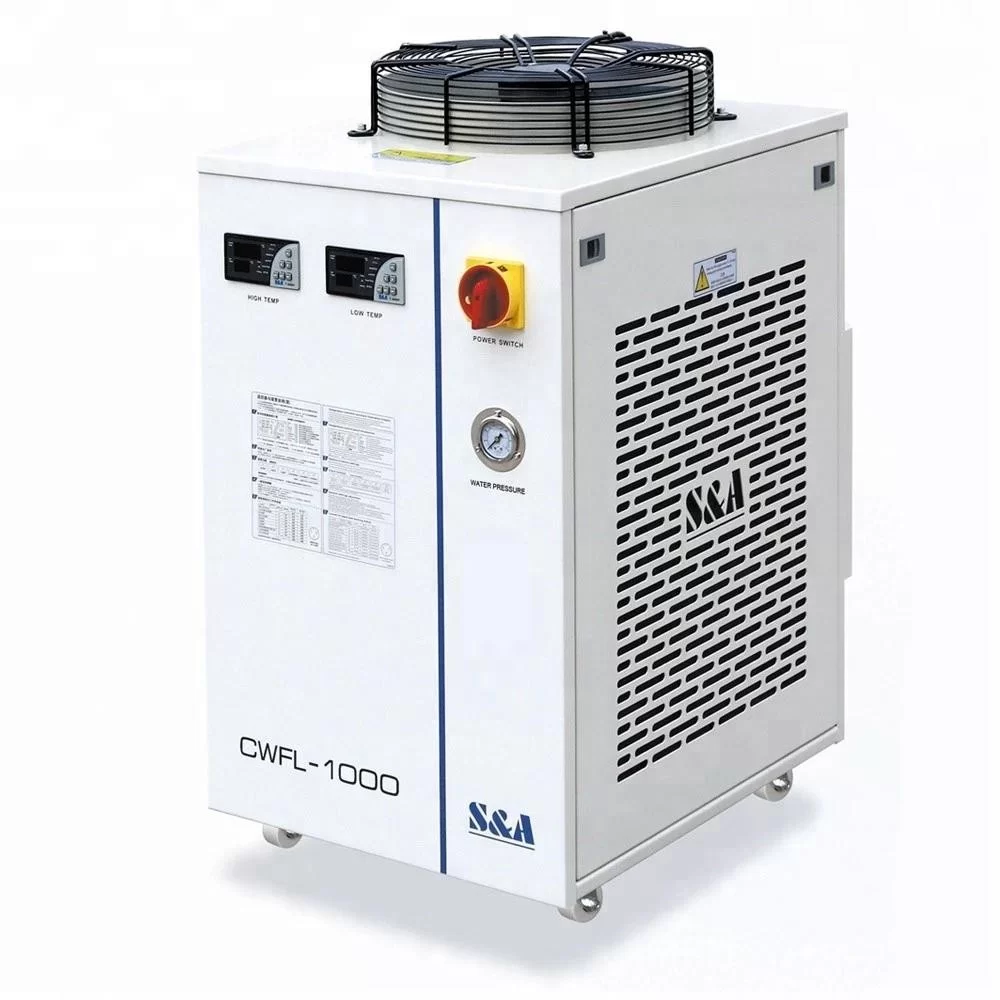

S & A Chiller
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry.

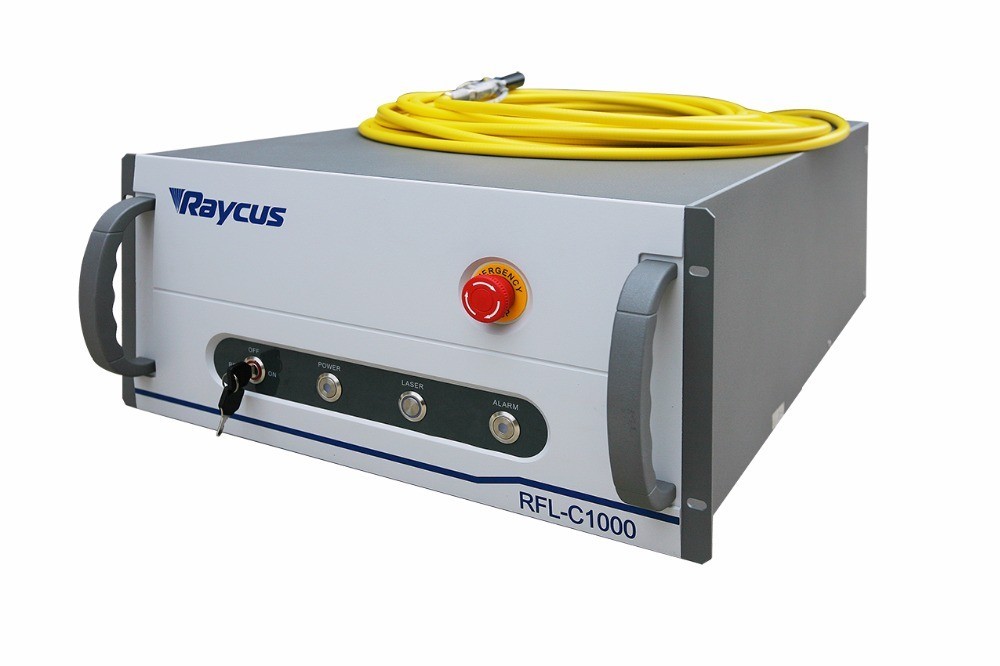

Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

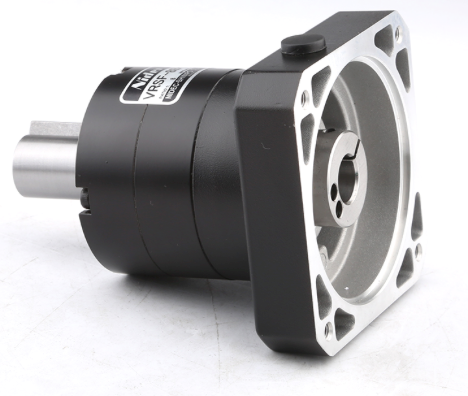

Japan Shimpo Servo Reducer
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.

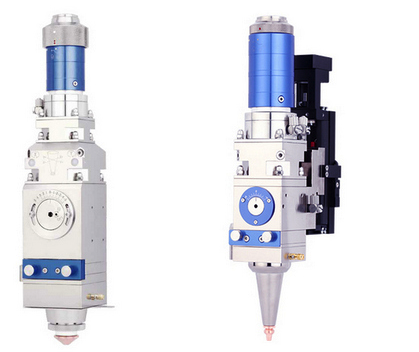

WSX Fiber Laser Cutting Head
Our fiber laser machine 1000 watt install the WSX NO:1 manual focus cutting head.
The machine also can optional the NC30 automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.

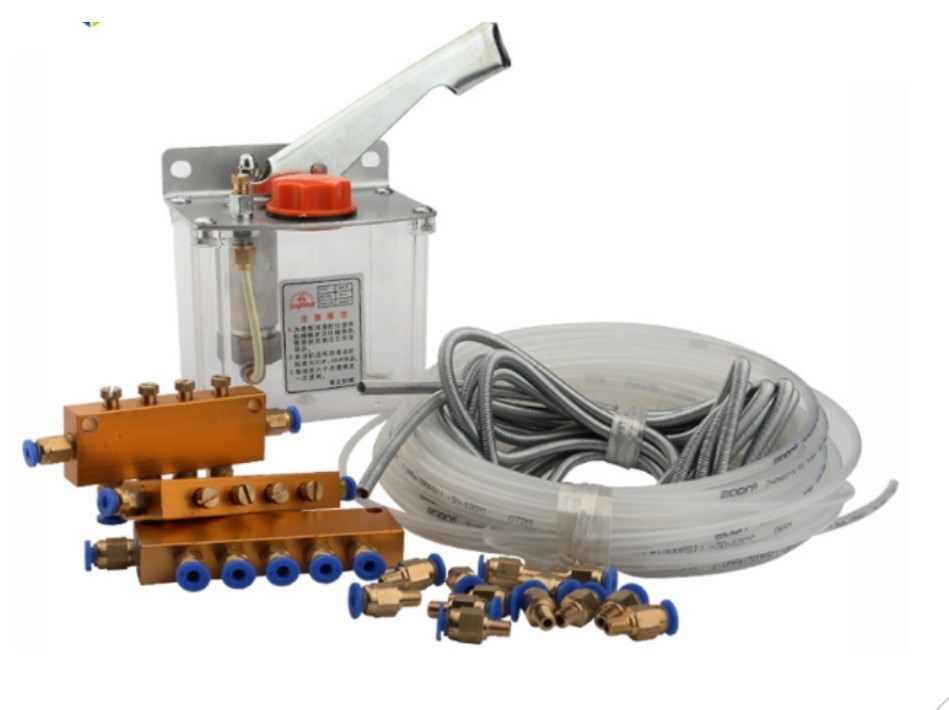

Oil Lubrication System
This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

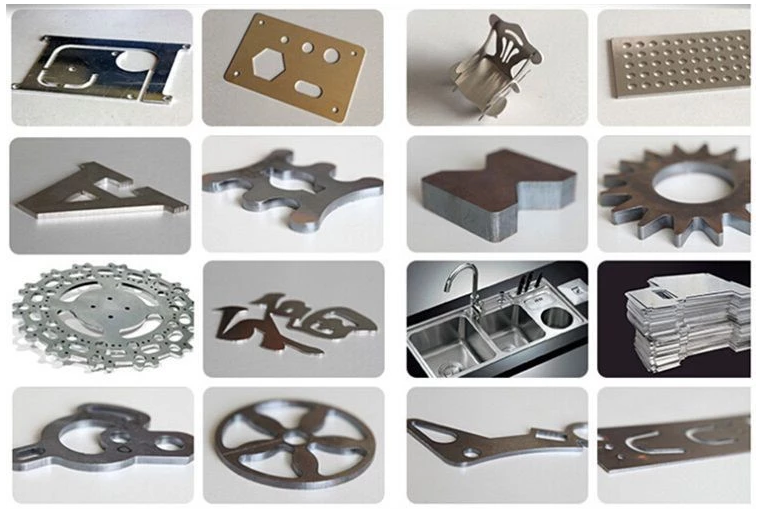

Application&Sample
Дэлгэрэнгүй мэдээлэл
- Application: LASER CUTTING, laser cutting
- Applicable Material: Metal, aluminum Cooper carbon stainless steel
- Нөхцөл байдал: Шинэ
- Лазерын төрөл: Шилэн лазер
- Cutting Area: 1300*2500mm
- Cutting Speed: 20m/min
- Graphic Format Supported: AI, PLT, DXF, Dwg
- Cutting Thickness: depending on the materials
- CNC эсвэл үгүй: Тийм ээ
- Хөргөх горим: УС ХӨРГҮҮЛЭХ
- Control Software: Schneider AC servo system
- Гарал үүслийн газар: Аньхуй, Хятад
- Лазерын эх үүсвэрийн брэнд: RAYCUS
- Лазер толгой брэнд: WSX
- Серво мотор Брэнд: Schneider
- Хөтөч брэнд: THK
- Хяналтын системийн брэнд: Cypcut
- Weight (KG): 2900 KG
- Гол борлуулалтын цэгүүд: Аюулгүй байдлын өндөр түвшин
- Оптик линзний брэнд: долгионы урт
- Баталгаат хугацаа: 1 жил
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company
- Машин механизмын туршилтын тайлан: Өгөгдсөн
- Видео гарах-шалгалт: Оруулсан
- Үндсэн эд ангиудын баталгаа: 1 жил
- Core Components: Motor, Gear, Engine, PLC, laser power
- Үйл ажиллагааны горим: тасралтгүй долгион
- Тохиргоо: 3 тэнхлэг
- Гаргасан бүтээгдэхүүн: Металл ба хоолой
- Онцлог: Усан хөргөлттэй
- Product name: FC1325 FC1530
- Laser power: 1000W
- Laser source: Raycus (optional IPG)
- Servo motor: France Schneider
- Laser head: WSX /Raytools
- Positioning Accuracy: 0.05 Mm
- Linear rail: Japan THK
- Reducer: Japan Shimpo reducer
- Ажлын талбай: 3000*1500мм
